Yamaha FSVR Synthesizer Free

The 1998 Yamaha FS1R is widely regarded as one of the most powerful and sophisticated digital synthesizers ever engineered

Combining advanced Frequency Modulation (FM) with Formant Synthesis, the original 1U rack unit was capable of producing evolving vocal pads, complex bells, and expressive physical textures unmatched by traditional FM synths. However, its notoriously difficult front-panel programming and limited hardware production made it an elusive collector’s item.

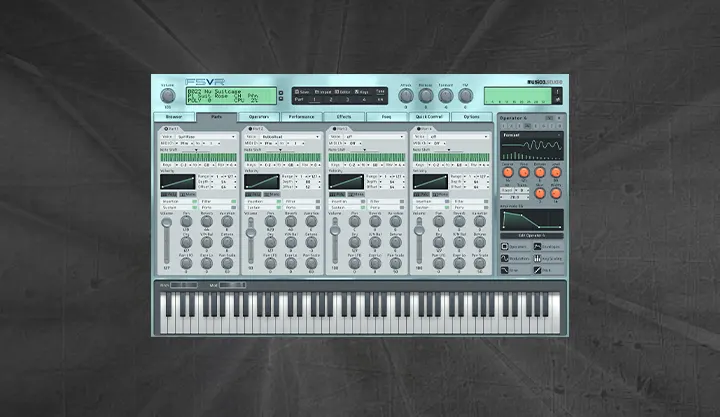

Enter FSVR (Formant Synthesizer Virtual Rack): a free and open-source software recreation developed by James Hansen, Zhiyuan Wan, and contributors via Musica.Studio. Rather than using approximations or standard wavetable techniques, FSVR’s core engine was built by rewriting the original hardware’s firmware logic into modern C++, delivering an accurate realization of the FS1R directly inside the digital audio workstation.

Core Sound Engine: 8-Operator FM and Formant Shaping

At the heart of FSVR lies the complex dual-architecture that defined the Yamaha FS1R:

Voiced and Unvoiced Operators: Each voice provides 8 voiced operators along with 8 unvoiced (noise) operators, functioning effectively as a 16-operator architecture.
88 FM Algorithms: Offers all 88 classic routing configurations, granting access to intricate carrier/modulator matrices that go far beyond standard 6-operator systems like the DX7.
Formant Synthesis (FMX): Operators can generate vocal-like formant filters and resonant peaks, allowing the instrument to replicate human vowel transitions and organic acoustic resonances without external processing.
Formant Sequence Playback (Fseq): Supports the original 90 factory Fseq recordings—rhythmic and evolving phonetic sequences that emulate speech and speech-like modulation.

Key Features and Architecture

Multitimbral Capability: 4-part multitimbral engine with 32 voices of polyphony.
Filtering and Modulation: Features the hardware’s 2-pole and 4-pole resonant multimode filters (Low-Pass, High-Pass, Band-Pass), coupled with dual LFOs and comprehensive pitch/amplitude envelope generators.
DSP Effects Section: A dedicated recreation of the internal effects chain, including Reverb, Delay, Chorus, Insertion Effects, and EQ.
Modern Additions:
- Morph Square: An intuitive 2D grid allowing seamless real-time interpolation between four voices or performance parts.
- Audio Import for Fseq: Modern functionality to analyze incoming audio files and convert them into custom Formant Sequences.
- Bank and Sysex Management: Native support for loading standard .syx patch banks directly from vintage libraries.

Included Factory Content

FSVR includes the entire original ROM soundset straight out of the box:

1,408 Voices: Spanning pristine electric pianos, aggressive bass tones, experimental metallic bells, and complex pads.
384 Performances: Layered multi-part arrangements utilizing the full DSP capabilities.
90 Formant Sequences (Fseqs): Ready-to-use vocal and vowel motion sequences.
